6000PRBEXT Telescopic Probe Extender

Made in USA-Defelsko
6000PRBEXT Telescopic Probe Extender for PosiTector 6000 Coating Thickness Gages
Click images to enlarge.

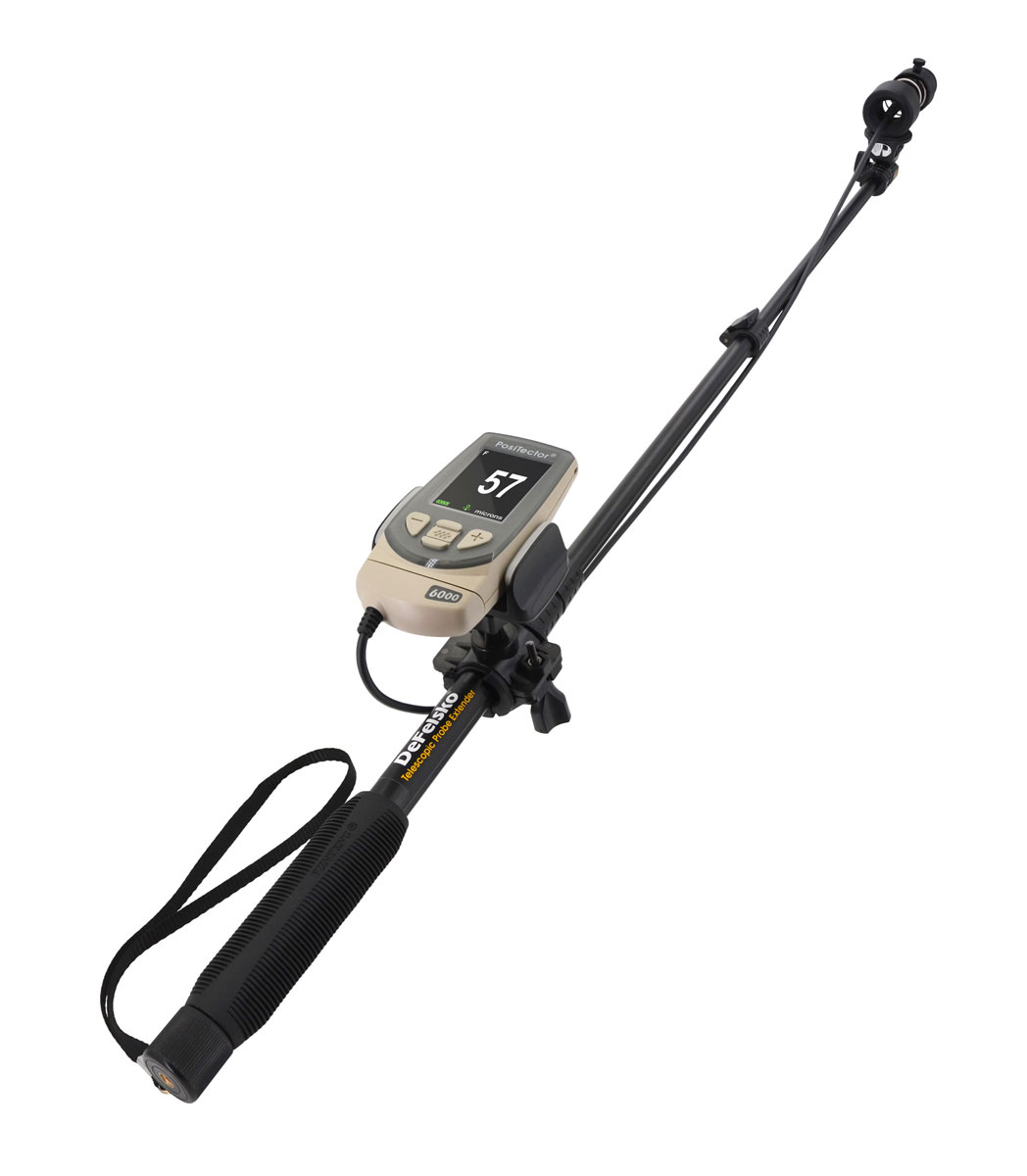

This lightweight, portable device increases the reach of PosiTector® 6000 regular cabled probes up to 124 cm (49"), ergonomically measuring overhead or underfoot. Includes a built-in mount for securing the PosiTector gauge body allowing for comfortable one-handed operation.

Features

  • For use with the PosiTector 6000 FS, NS, FNS, FXS, FNDS, NAS and FTS probes

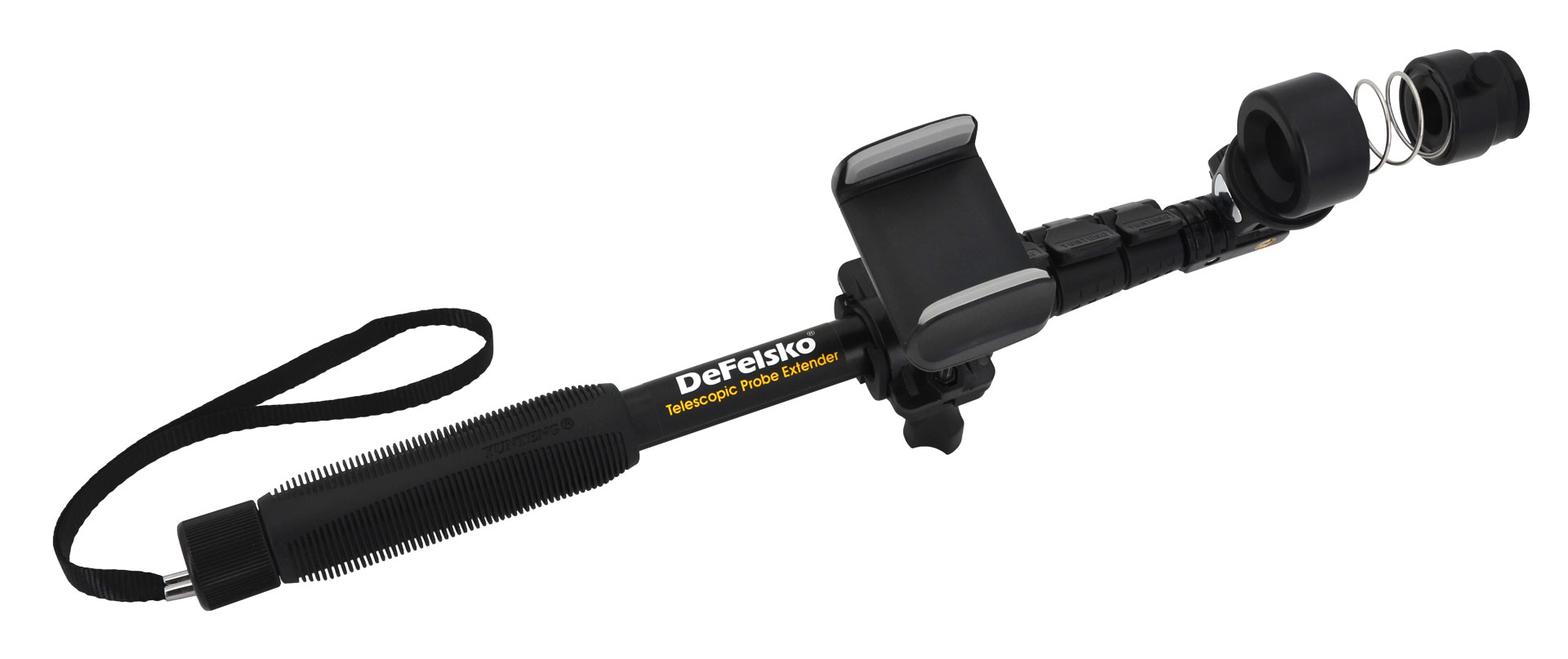

  • Provides up to 124 cm (49") of reach and collapses to 47 cm (18.5") for easy storage
  • Articulating probe holder with rubber stabilizing ring provides secure probe contact at odd angles
  • Gage body mount securely holds the PosiTector in place
  • Detachable probe holder is ready to integrate into longer extensions (monopods) and drone/robotic testing systems

FAQ's (Frequently Asked Questions)

Answer

The Telescopic Probe Extender allows you to increase the reach of your PosiTector® 6000 FS, NS, FNS, FXS, FNDS, NAS and FTS probes. This lightweight, portable rod allows you to extend the reach of your PosiTector 6000 separate probes up to 124 cm (49") eliminating awkward and uncomfortable motions while measuring above your head or below your feet. A holder for the PosiTector gage body is included, which is ideal for singlehanded operation.

Answer

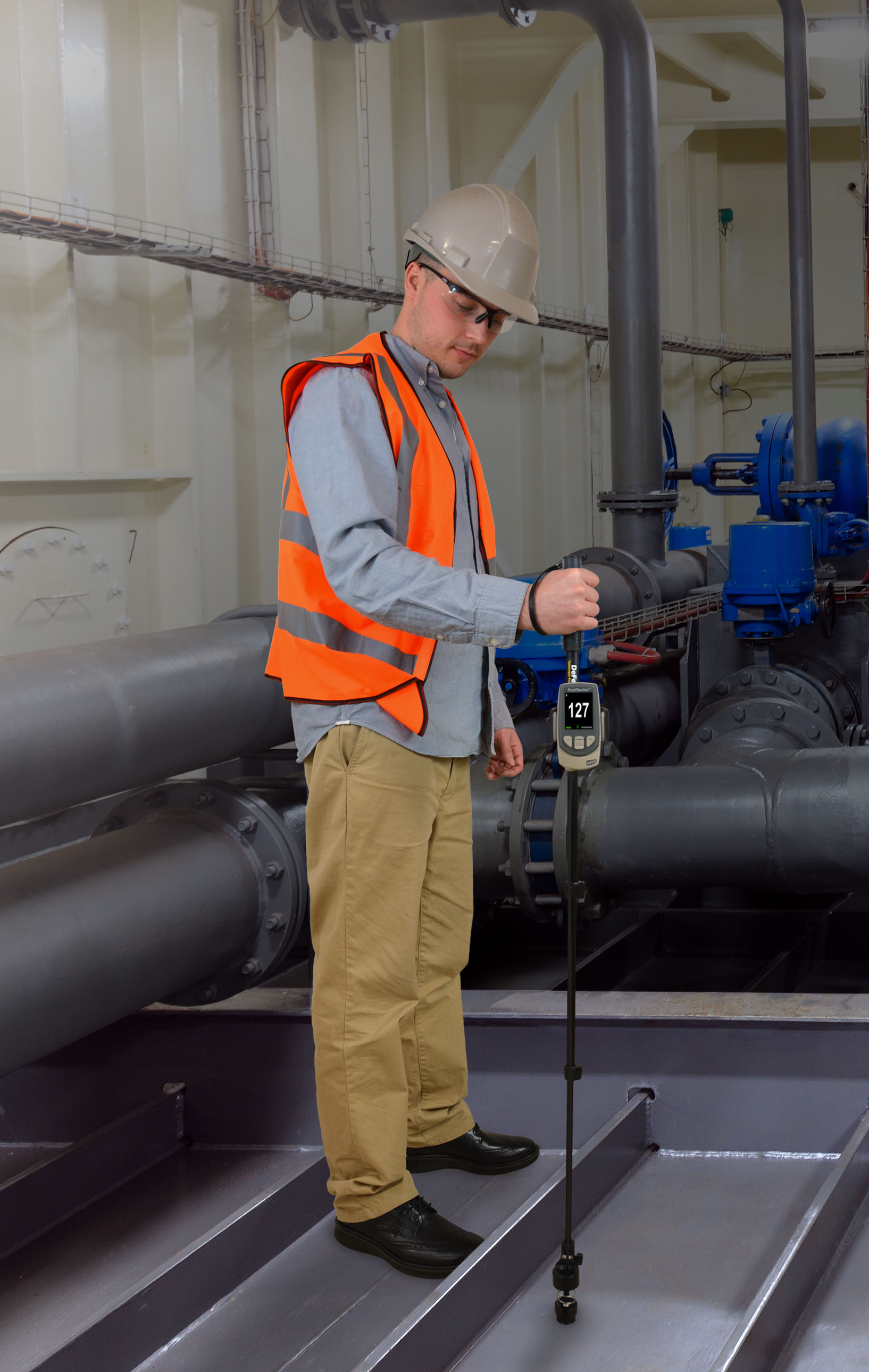

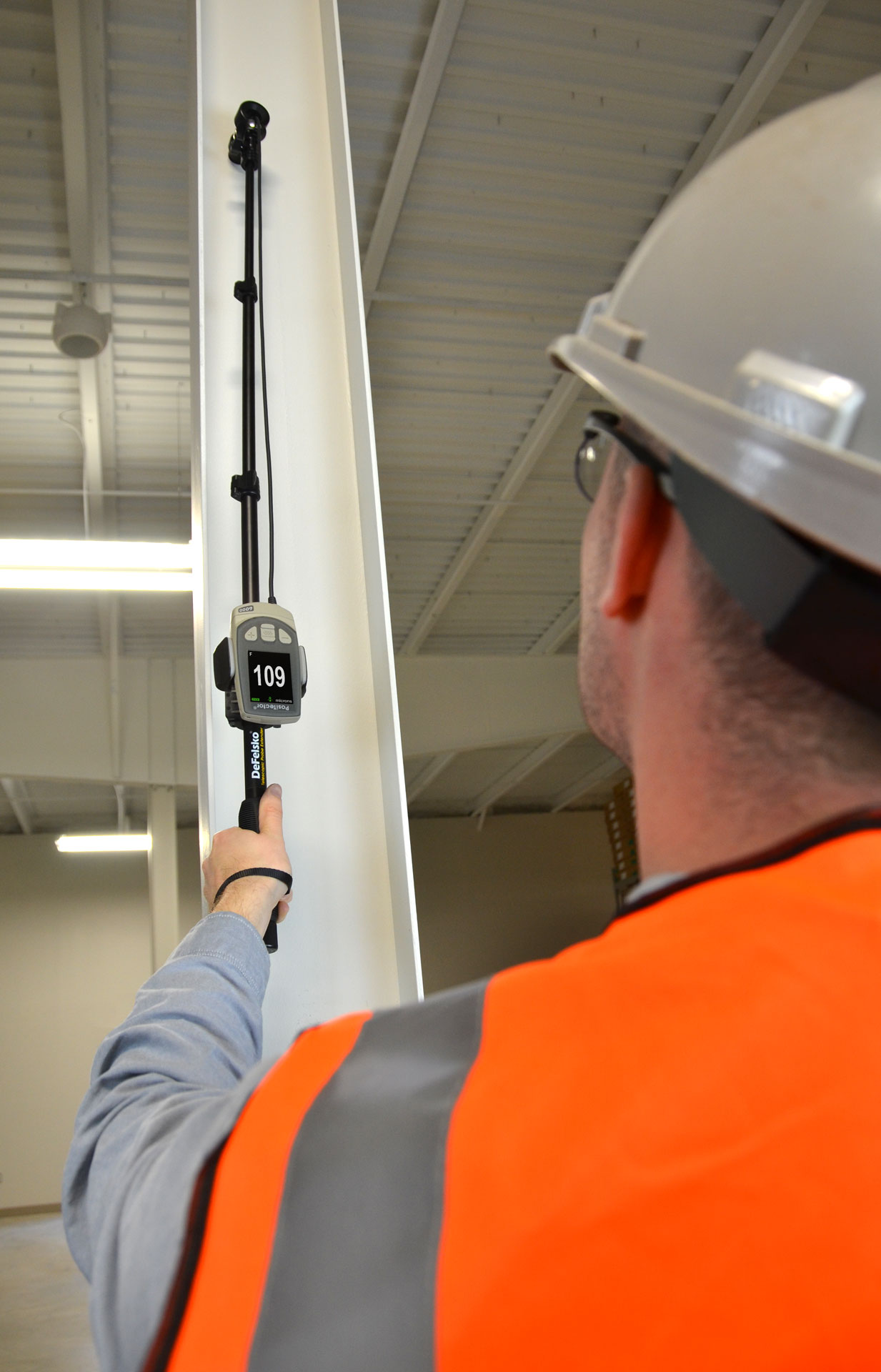

The Telescopic Probe Extender is ideally suited for the user who takes frequent coating thickness measurements above their head or below their feet. The 124 cm (49") reach and articulating probe holder makes it easy to position the probe in hard to reach areas including...

  • Steel Decking
  • Ballast Tanks
  • Ship Hulls
  • Pipelines
The detachable probe holder is ready to be integrated into robotic or drone testing systems.

Answer

The Telescopic Probe Extender is 47 cm (18.5") when collapsed and can extend up to 124 cm (49"). The 10 cm (3.34") headroom allows for insertion into narrow pipes and other hard to reach areas.

Answer

Yes. The lightweight, portable probe extender can be used one-handed— keeping the other hand free for climbing. It conveniently collapses to 47 cm (18.5") for easy portability. The articulating/swiveling probe holder features a soft foot contact point providing secure probe placement even at odd angles.

Answer

The detachable head features a ¼"-20 thread to integrate seamlessly into drone or robotic testing systems. Since this thread pattern is typically used on cameras and tripods, longer extensions ('monopods') can easily be sourced (longer probe cable recommended- call for pricing).

Answer

No. The probe extender can be used with the PosiTector 6000 FS, NS, FNS, FXS, FNDS, NAS and FTS probes only.

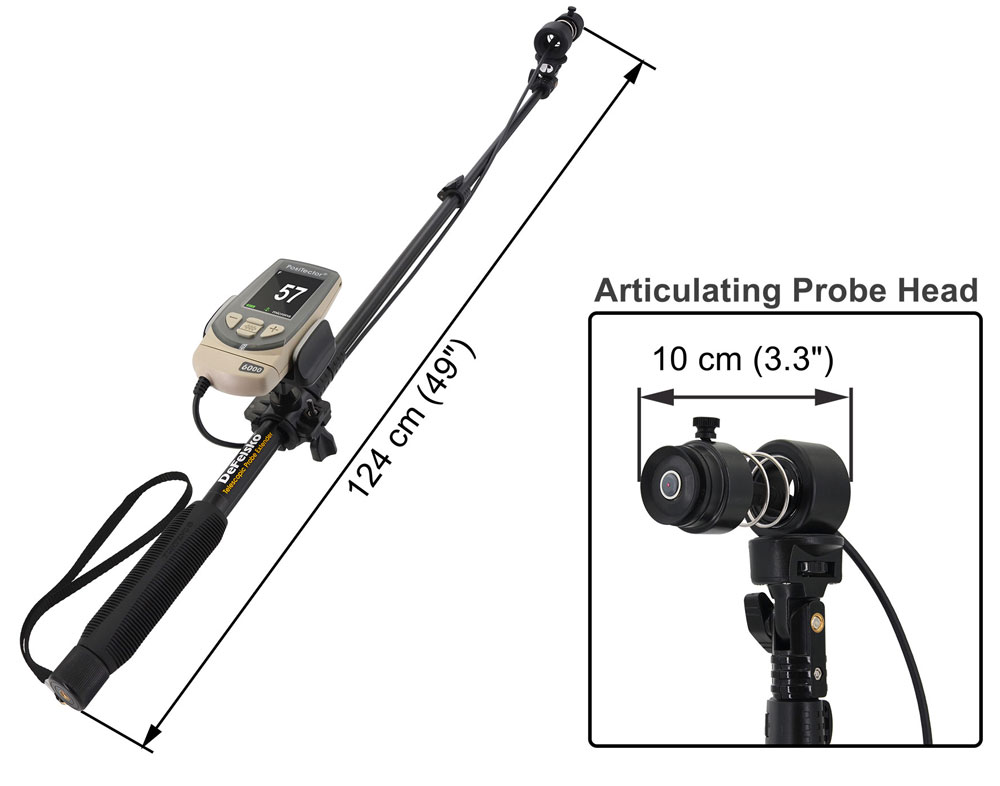

Dimensions

Specifications

Length47 cm (18.5") collapsed, up to 124 cm (49") extended
Headroom10 cm (3.3")
Weight370 g (13 oz.)
