SecoTest Cross Hatch Cutter for ISO 2409 and ASTM D3359-02 Testing

Made in Germany

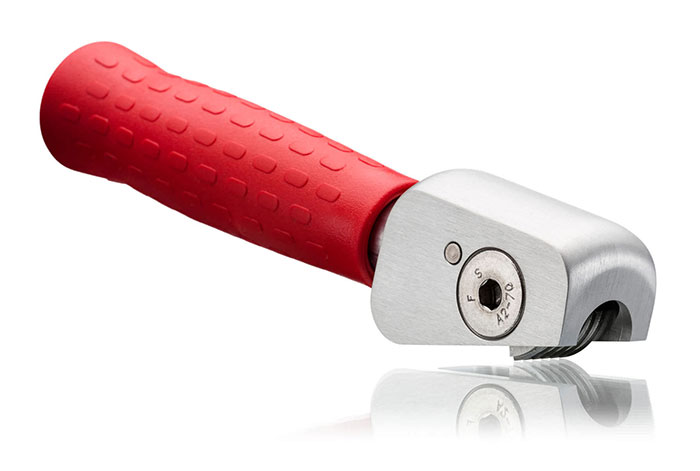

SecoTest Cross Hatch Cutter
Click images to enlarge.

Exceptionally strong and handy cross hatch cutter made on the lines of DIN EN ISO 2409 and ASTM D3359-02 to conduct cross cut tests. The SecoTest is used for the assessment of adhesiveness of single or multiple coatings (varnishes, synthetic materials, etc.) on hard (steel) and soft (wood) substrates.

The cross cut testers of the SecoTest series consist of a sturdy holder for the six-edge multi cutting blade and a rotatable non-slip grip, which prevents the multi cutting blade from canting.

To ensure that this procedure is repeatable, put the test object through a suitable conditioning process (see DIN EN ISO 2409, section 6); while testing at construction sites make a note of the ambient conditions in the test report.

The procedure defined by ISO 4642 can be employed to measure adhesiveness.

Features

  • High-grade, tool-steel multi cutting blade in 4 different models with standard cutting-edge geometry
  • Movable cutter head
  • Multi cutting blade with 6 cutting edges
  • Versions for tests according to DIN EN ISO 2409 and ASTM D 3359
  • Cutting edges lie on the surface
  • With Magnifying glass for clear evaluation of the cut edges

Complete Kit

The SecoTest includes:

  • SecoTest
  • Allen key for changing the multi cutting blade
  • Magnifier
  • Brush
  • Short operating instructions
  • Works Certificate
  • Plastic carrying case
Blades are sold separately

Specifications

SecoTest 1
Coating Thicknessup to 60 µm on hard substrates (e.g. metal, plastics)
6 x 1 mmNumber of cutting edges x distance (mm)
NormDIN EN ISO 2409
------
SecoTest 2
Coating Thicknessup to 60 µm on soft substrates (e.g. wood, render)
Coating Thicknessfrom 61 µm to 120 µm on hard and soft substrates
6 x 2 mmNumber of cutting edges x distance (mm)
NormDIN EN ISO 2409
------
SecoTest 2
Coating Thicknessfrom 51 µm to 125 µm
6 x 2 mmNumber of cutting edges x distance (mm)
NormASTM D 3359
------
SecoTest 3
Coating Thicknessfrom 121 µm to 250 µm on hard and soft substrates
6 x 3 mmNumber of cutting edges x distance (mm)
NormDIN EN ISO 2409
------
SecoTest 4
Coating Thicknessup to 50 µm
11 x 1 mmNumber of cutting edges x distance (mm)
NormASTM D 3359
------
Dimensions18 x 3,8 x 3 cm
Weight330 gram
Warranty1 year

Downloads

Buy Now

Item Description Price
SecoTest Cross Hatch Cutter Handle - BLADES SOLD SEPARATELY
$300.00
Accessories
70-800-0008
SecoTest Blades, 11 blades 1 mm distance for ASTM D 3359
$265.00
70-800-0001

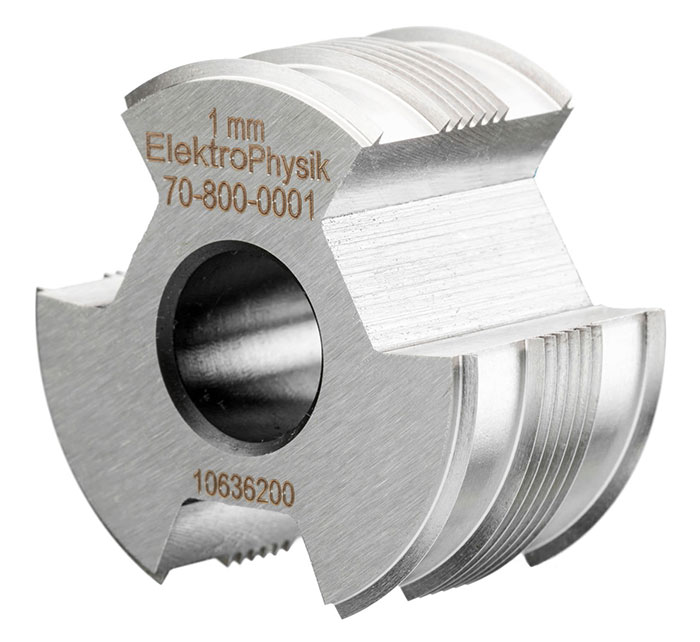

SecoTest Blades, 6 blades 1 mm distance for ISO 2409
$265.00
70-800-0002
SecoTest Blades, 6 blades 2 mm distance for ISO 2409
$265.00
70-800-0003
SecoTest Blades, 6 blades 3 mm distance for ISO 2409
$265.00
